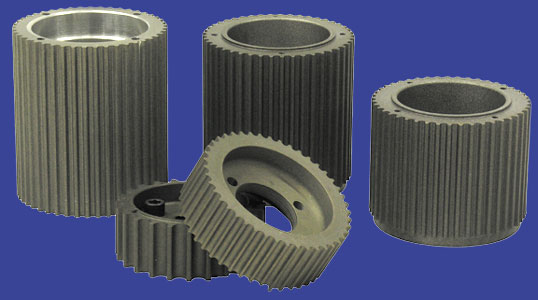

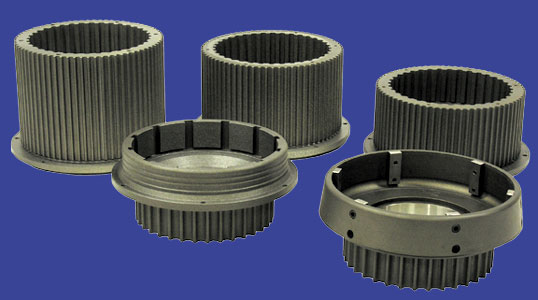

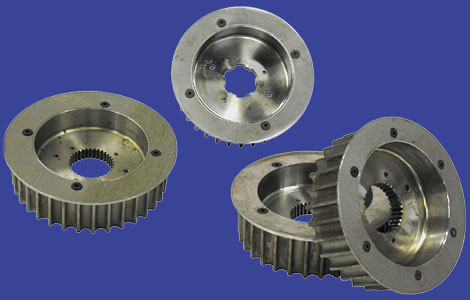

KARATA REPLACEMENT ENGINE AND CLUTCH BASKET PULLEYS All Karata Pulleys are manufactured to exacting standards and proprietary tooth profile specifications from our belt manufacturers. The tooth profile of all Karata pulleys is precisely matched to the specified belt for proper belt engagement and release, long dependable service and cool, quiet operation. BIG TWIN ENGINE FRONT PULLEYS Part # Description 31000 1936-54 1.500" X 40 TEETH 8. 07 MM HTD PROFILE ONLY 31001 1955-84 1.500" X 40 TEETH 8. 07 MM HTD PROFILE ONLY 31004 1984-UP 1.750" X 40 TEETH 8. 07 MM STPD PROFILE ONLY 31020 1936-54 1.500" X 24 TEETH 13. 8 MM HTD PROFILE ONLY 31021 1955-84 1.500" X 24 TEETH 13. 8 MM HTD PROFILE ONLY 31022 1980-84 1.500" X 21 TEETH 14. 0 MM HTD PROFILE ONLY 31023 1984-UP 1.750" X 24 TEETH 13. 8 MM HTD PROFILE ONLY 31024 1984-UP 1.750" X 21 TEETH 14. 0 MM HTD PROFILE ONLY 31030 1936-54 3.000" X 47 TEETH 8. 00 MM HTD PROFILE ONLY 31031 1955-84 3.000" X 47 TEETH 8. 00 MM HTD PROFILE ONLY 31032 1955-UP 3.000" X 45 TEETH 8. 00 MM STPD PROFILE ONLY 31033 1955-UP 4.000" X 45 TEETH 8. 00 MM STPD PROFILE ONLY 31034 1990-UP 3.000" X 48 TEETH 8. 07 MM STPD PROFILE ONLY 31035 1990-UP 4.000" X 48 TEETH 8. 07 MM STPD PROFILE ONLY 31036 1984-UP 1.750" X 48 TEETH 8. 07 MM STPD PROFILE ONLY 31037 1973-84 3.000" X 47 TEETH 8. 00 MM STPD PROFILE ONLY 31038 1973-84 4.000" X 47 TEETH 8. 00 MM STPD PROFILE ONLY 31039 1990-UP 5.000" X 45 TEETH 8. 00 MM STPD PROFILE ONLY 31041 2005-UP 2.500" X 47 TEETH 8. 00 MM STPD PROFILE ONLY 31043 2005-UP 3.000" X 47 TEETH 8. 00 MM STPD PROFILE ONLY 31045 2005-UP 4.000" X 47 TEETH 8. 00 MM STPD PROFILE ONLY 31047 2005-UP 5.000" X 47 TEETH 8. 00 MM STPD PROFILE ONLY SPORTSTER ENGINE FRONT PULLEYS Part # Description 31101 1971-76 1.500" X 44 TEETH 8. 00 MM HTD PROFILE ONLY 31102 1977-84 1.500" X 44 TEETH 8. 00 MM HTD PROFILE ONLY 31108 1957-70 3.000" X 44 TEETH 8. 00 MM HTD PROFILE ONLY 31130 1957-70 3.000" X 44 TEETH 8. 00 MM STPD PROFILE ONLY BIG TWIN CLUTCH BASKET PULLEYS Part # Description 33010 1936-84 1.500" X 62 TEETH 8. 07 MM HTD PROFILE ONLY 33011 1984-89 1.750" X 62 TEETH 8. 07 MM STPD PROFILE ONLY 33013 1990-UP 1.750" X 62 TEETH 8. 07 MM STPD PROFILE ONLY 33030 1936-84 3.000" X 76 TEETH 8. 00 MM HTD PROFILE ONLY 33040 1936-84 1.500" X 37 TEETH 13. 8 MM HTD PROFILE ONLY 33041 1980-84 1.500" X 34 TEETH 14. 0 MM HTD PROFILE ONLY 33042 1984-89 1.750" X 34 TEETH 14. 0 MM HTD PROFILE ONLY 33043 1990-UP 1.750" X 34 TEETH 14. 0 MM HTD PROFILE ONLY 33044 1984-89 1.750" X 37 TEETH 13. 8 MM HTD PROFILE ONLY 33045 1990-UP 1.750" X 37 TEETH 13. 8 MM HTD PROFILE ONLY 33048 1990-UP 3.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33049 1990-UP 4.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33050 1990-UP 3.000" X 72 TEETH 8. 07 MM STPD PROFILE ONLY 33051 1990-UP 4.000" X 72 TEETH 8. 07 MM STPD PROFILE ONLY 33052 1973-84 3.000" X 76 TEETH 8. 00 MM STPD PROFILE ONLY 33053 1973-84 4.000" X 76 TEETH 8. 00 MM STPD PROFILE ONLY 33054 1984-89 1.750" X 78 TEETH 8. 07 MM STPD PROFILE ONLY 33055 1990-UP 1.750" X 78 TEETH 8. 07 MM STPD PROFILE ONLY 33056 1986-89 3.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33057 1986-89 4.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33058 1990-UP 5.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33060 2005-UP 2.500" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33062 2005-UP 3.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33064 2005-UP 4.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY 33066 2005-UP 5.000" X 71 TEETH 8. 00 MM STPD PROFILE ONLY SPORTSTER CLUTCH BASKET PULLEYS Part # Description 33125 1971-84 1.500" X 77 TEETH 8. 00 MM HTD PROFILE ONLY 33129 1957-84 3.000" X 77 TEETH 8. 00 MM HTD PROFILE ONLY 33130 1957-70 3.000" X 77 TEETH 8. 00 MM STPD PROFILE ONLY 54000 1957-70 SLIPPER CLUTCH   KARATA TRANSMISSION PULLEYS KARATA transmission pulleys are manufactured from 4140 chromoly steel and feature the same precision tooth profilesasour other pulleys. Used independentlyor with our rear wheelpulleys, finaldrive ratioscan be altered to suit virtually any riding style. With the popularity of the 5-in-4 and now 6-in-4 transmission that allows a 5-speed or 6-speed to be installed in a 4-speed frame, we have designed a transmission pulley for that combination. The KARATA 32181S pulley has 33 teeth and accepts a 1.50" belt. This pulley allows builders using the 5-in-4 or 6-in-4 transmission to run a rear belt drive. BIG TWIN TRANSMISSION PULLEYS Part # Description 32174 1985-UP 1.500" X 28 TEETH 14. 0 MM 32175 1985-UP 1.500" X 29 TEETH 14. 0 MM 32176 1985-UP 1.500" X 30 TEETH 14. 0 MM 32177 1985-UP 1.500" X 31 TEETH 14. 0 MM 32178 1985-UP 1.500" X 34 TEETH 14. 0 MM 32179 1985-UP 1.500" X 35 TEETH 14. 0 MM 32180 1973-84 1.500" X 33 TEETH 14. 0 MM 31181 1980-84 1.500" X 32 TEETH 14. 0 MM 32181S 4 X 5 SPEED 1.500" X 33 TEETH 14. 0 MM 32183 1985-UP 1.500" X 32 TEETH 14. 0 MM 32184 1985-UP 1.500" X 33 TEETH 14. 0 MM 32185 1936-57 1.500" X 33 TEETH 14. 0 MM KARATA REAR WHEEL PULLEYS Good looking, precision machined and true running, KARATA�S rear wheel pulleys are manufactured with all the attention to detail that goes into every KARATA pulley. Our rear wheel pulleys are available in either 66-tooth or 70-tooth sizes, in machined finish. BIG TWIN REAR WHEEL PULLEYS Part # Description 34100 REV PRO 1.500" 66 TEETH 34102 REV PRO 1.500" 70 TEETH 34108 REV PRO 1.125" 66 TEETH 34110 REV PRO 1.125" 70 TEETH BACK TO MAIN MENU
