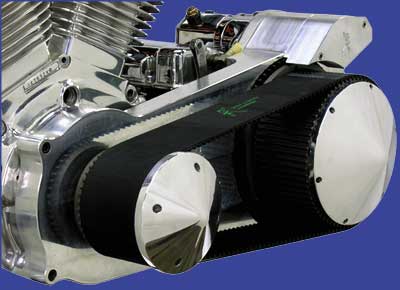

INTIMIDATOR PRIMARY BELT DRIVES -DYNA Left-Side Drive: 3�, 4�, 5� Widths Left-Side Drive Wide Tire Solutions: 3�, 4�, 5� Widths For Models Using Arlen Ness Y2K   INTIMIDATOR 5.0" primary belt drive 1993 - up shown with 16120 outboard bearing support system 1993 -2001 16442 1993 -2001- RSD 16442A 2002- up 16445   INTIMIDATOR 4.0� primary belt drive 1993 - up shown with optional 40088 �Smoothie� front pulley cover & 40090 �Smoothie� rear pulley cover 1993 - 2001 16441 1993 - 2001 RSD 16441A 2002 - up 16444   INTIMIDATOR 3.0� primary belt drive shown with optional 40096 �Hubcap� front pulley cover & 40099 �Hubcap' rear pulley cover 1993 - 2001 16440 1993 - 2001 RSD 16440A 2002 - up 16443   Arlen Ness Y2K models with Dyna transmission Complete INTIMIDATOR Belt Drive Kits 1993-2001 3" 16437 4" 16438 5" 16439 2002- up 3" 16446 4" 16447 5" 16448 Available in three sizes, massive 5�, beefy 4� and traditional 3� INTIMIDATOR SERIES belt drives are designed to fit Evolution and Twin Cam Dyna models from 1993 to present. For custom motorcycles based on Dyna-style frames, the INTIMIDATOR SERIES primary belt drive is the only choice. KARATA INTIMIDATOR SERIES Dyna primary belt drive kits are available with non-offset motor plates for 1993-2001 models and for 2002-up models and for and custom motorcycles that use Dyna-style frames. SPECIALITY APPLICATIONS KARATA�S continuing commitment to innovation has resulted in the design and manufacture of INTIMIDATOR SERIES primary belt drives for use on 1993-2001 and 2002-up models and custom motorcycles that use wide-tire Dyna-style frames, KARATA offers a billet motor plate with a 1.00� offset at the engine AND transmission. RIGHT SIDE DRIVE APPLICATIONS KARATA is the first manufacturer in the industry to offer a dedicated family of Softail/Custom belt drives specifically for custom motorcycles using Right Side Drive (RSD) transmissions. Look closely, and you�ll see that all INTIMIDATOR SERIES primary belt drives that are for RSD applications feature a uniquely-machined motor plate that has no drive belt/chain cut outs. This feature allows for even greater strength and rigidity in addition to setting a new design standard for the industry. The INTIMIDATOR SERIES 1993 -2001 DYNA Complete Belt Drives 16440A, 16441A and 16442A are for RSD applications.   RSD KARATA outboard bearing support system is included with all 5� INTIMIDATOR SERIES belt drives and is an ideal option for 3� and 4� drives. ALL INTIMIDATOR SERIES PRIMARY BELT DRIVES INCLUDE THE FOLLOWING: One-piece billet aluminum motor plate with sealed mainshaft bearing, installed Billet aluminum jackshaft support Billet steel starter jackshaft Front pulley with steel retaining ring Rear pulley with ring gear and double-row clutch hub bearing, installed Goodyear Hibrex with Flexten Plus technology 8mm belt Engine shaft nut All necessary hardware included 5-inch belt drives include your choice of outboard bearing support kits. See OBSS for all bearing support plate styles.
