Karata Intimidator� Belt Drives

INTIMIDATOR PRIMARY BELT DRIVES - SHOVELHEAD

1970-1984 Left-Side Drive - 3�, 4�, 5� Widths SOFTAIL 5-SPEED CONVERSION CONVERT ANY FX/FL 4-SPEED
1970-1984 Left-Side Drive - 3�, 4� Widths: FX/FL 4-SPEED & 5-IN-4 TRANSMISSIONS

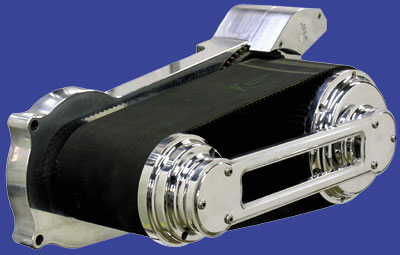

 INTIMIDATOR 5.0 inch primary belt drive FX/FL

INTIMIDATOR 5.0" primary belt drive 1970-1984
4-speed FX/FL swingarm models Conversion to 1990-1999 Softail transmission
shown with 16120 outboard bearing support system
16432 optional offsets: .250", .500", .750", 1.000", 1.250", 1.4375". 1.500" & 2.000".
LSD16432

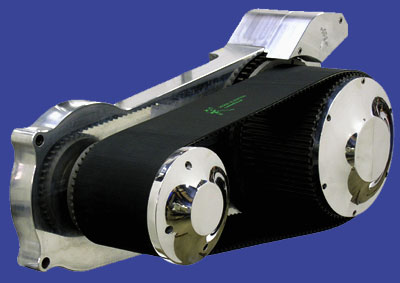

 INTIMIDATOR 4.0 inch primary belt drive FX/FL
INTIMIDATOR 4.0" primary belt drive 1970-1984
4-speed FX/FL swingarm models - Conversion to 1990-1999 Softail transmission
shown with optional 40088 �Smoothie� front pulley cover & 40090 �Smoothie� rear pulley cover
16431 optional offsets: .250", .500", .750", 1.000", 1.250", 1.4375". 1.500" & 2.000".
LSD16431

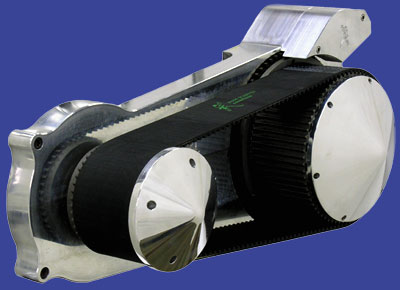

 INTIMIDATOR 3.0 inch primary belt drive FX/FL
INTIMIDATOR 3.0" primary belt drive 1970-1984
4-speed FX/FL swingarm models - Conversion to 1990-1999 Softail transmission
shown with optional 40097 �Hubcap� front pulley cover & 40095 �Hubcap� rear pulley cover
16430 optional offsets: .250", .500", .750", 1.000" , 1.250", 1.4375". 1.500" & 2.000".
LSD16430

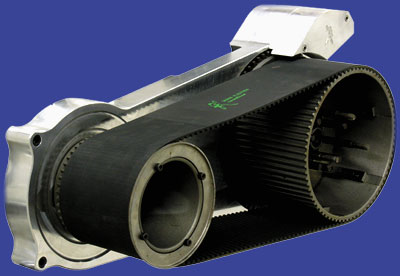

 INTIMIDATOR Shovelhead 4.0 inch primary belt drive 4 speed
INTIMIDATOR 4.0" primary belt drive 1970-1984 4-speed FX/FL modelswith 1973-1978 Ratchet Top
4-speed transmission or 5-in-4 transmission conversions
16465, 16467 optional offsets: .250", .500", .750", 1.000" & 1.250".
4 speed16465
5 in 416467

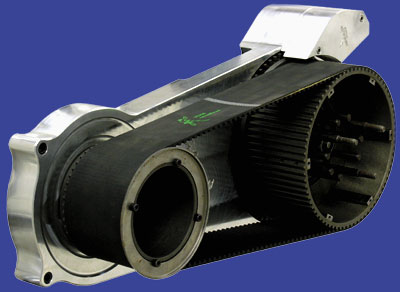

 INTIMIDATOR Shovelhead 3.0 inch primary belt drive 4 speed
INTIMIDATOR 3.0" primary belt drive 1970-1984
4-speed FX/FL models with 1973-1978 Ratchet Top
4-speed transmission or 5-in-4 transmission conversions
16464, 16466 optional offsets: .250", .500", .750", 1.000" & 1.250".
4 speed 16464
5 in 4 16466


Every KARATA INTIMIDATOR SERIES Primary belt drive kit is complete as shown above. 5" kits include an outboard bearing support

SOFTAIL 5-SPEED CONVERSION CONVERT ANY FX/FL 4-SPEED
belt drives for Shovelhead (and early Evolution FX) models offer a wide selection for upgrading classic 4-speed FX/FL models. Available in three sizes, massive 5�, beefy 4� and traditional 3�. This innovative primary belt drive converts any 1970 - 1984 FX/FL 4-speed swingarm model to accept a 1990-1999 Softail-style 5-speed transmission. This combination installs in the 4-speed swingarm frame with only a slight modification to the transmission case and provides a perfect upgrade to the traditional 4-speed swingarm frame.

These left-side drive primary belt drive kits [16430, 16431, 16432] can be ordered with offset motor plates: .250", .500", .750", 1.000", 1.250", 1.4375". 1.500" & 2.000".

FX/FL 4-SPEED & 5-IN-4 TRANSMISSIONS
Any 1970-1984 FX/FL 4-speed swingarm model can be fitted with a primary belt drive. These belt drives are available for motorcycles running either 1973 - 1978 Ratchet Top 4-speeds or 5-in-4 transmission conversions and are available in two sizes, beefy 4� and traditional 3�.

These left-side drive primary belt drive kits [16464, 16465, 16466, & 16467] can be ordered with offset motor plates: .250", .500", .750", 1.000" & 1.250".

outboard bearing support system is included with all 5� belt drives and is an ideal option for 3� and 4� drives.

ALL INTIMIDATOR SERIES PRIMARY BELT DRIVES INCLUDE THE FOLLOWING:
  • One-piece billet aluminum motor plate with sealed mainshaft bearing, installed
  • Billet aluminum jackshaft support
  • Billet steel starter jackshaft
  • Front pulley with steel retaining ring
  • Rear pulley with ring gear and double-row clutch hub bearing, installed
  • Goodyear Hibrex with Flexten Plus technology 8mm belt
  • Engine shaft nut
  • All necessary hardware included
  • 5-inch belt drives include your choice of outboard bearing support kits. See OBSS for all bearing support plate styles.
